Industrial Hoses and Fittings

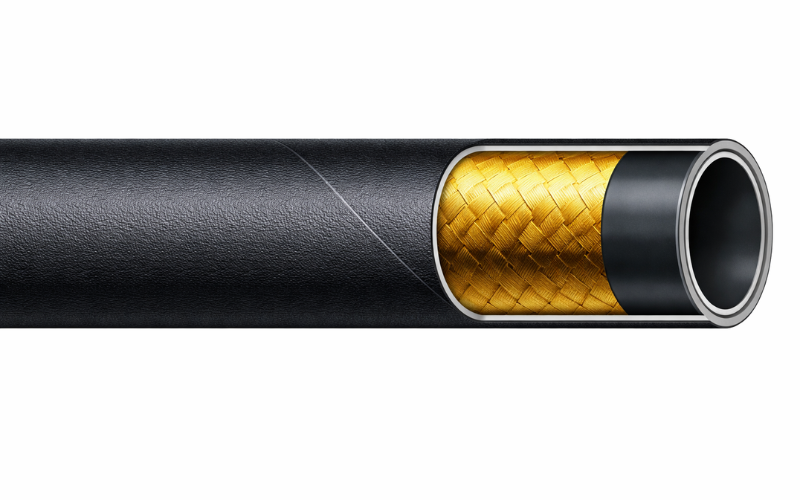

R1AT

Application

High pressure hydraulics oils, air and water.

Construction Tube Reinforcement Cover



Synthetic oil resistant rubber



1 high tensile steel wire braid



Synthetic rubber – abrasion, ozone and weather resistant

Temp. Range Impulse Cycles



-40oC to +120Co 150,000

Hose Specification Table

Hose Size						Maximum Working Pressure		Minimum Burst Pressure		Minimum Bend Radius
Code		I.D.		R.O.D.	O.D.	psi	bar	psi	bar	inch	mm
		inch	mm	mm	mm	psi	bar	psi	bar	inch	mm
6	-4	1/4	6.4	11.1	13.4	3265	225	13060	900	3.9	100
8	-5	May-16	7.9	12.7	15	3120	215	12480	850	4.5	105
10	-6	3/8	9.5	15.1	17.4	2610	180	10440	720	5.1	130
12	-8	1/2	12.7	18.2	20.3	2320	160	9280	640	7.1	180
16	-10	5/8	15.9	21.4	23.7	1890	130	7560	520	7.9	200
19	-12	3/4	19	25.4	27.7	1525	105	6100	420	9.5	240
25	-16	1	25.4	33.3	35.6	1275	88	5100	352	11.8	300
32	-20	1 1/4	31.8	40	43	915	63	3660	252	16.5	420
38	-24	1 1/2	38.1	46.4	50.4	725	50	2900	200	19.7	500
51	-32	2	50.8	59.5	63.5	580	40	2320	160	24.8	630
*60	-38	2 3/8	60.3	69	75	362	25	1450	100	30	762
*64	-40	2 1/2	63.5	73	79.55	362	25	1450	100	30	762
*76	-48	3	76.2	86.4	94.4	290	20	1160	80	36	915
*90	-56	3 1/2	90	98.5	105.5	220	15	880	60	42	1067
*100	-64	4	101.6	110.6	117	145	10	580	40	43.5	1105

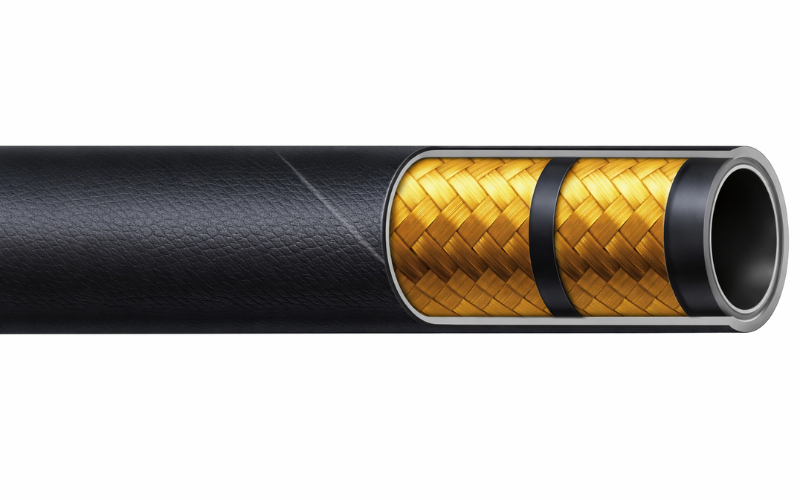

R2AT

Application

High pressure hydraulics oils, air and water.

Construction Tube Reinforcement Cover



Synthetic oil resistant rubber



2 high tensile steel wire braid



Synthetic rubber – abrasion, ozone and weather resistant

Temp. Range Impulse Cycles



-40oC to +120Co 200,000

Hose Specification Table

Hose Size						Maximum Working Pressure		Minimum Burst Pressure		Minimum Bend Radius
Code		I.D.		R.O.D.	O.D.	psi	bar	psi	bar	inch	mm
		inch	mm	mm	mm	psi	bar	psi	bar	inch	mm
6	-4	1/4	6.4	12.7	15.1	5800	400	23200	1600	4	100
8	-5	May-16	7.9	14.3	16.7	5100	350	20400	1400	4.5	115
10	-6	3/8	9.5	16.7	19.1	4800	330	19200	1320	5.1	130
12	-8	1/2	12.7	19.8	22.2	4000	276	16000	1103	7.1	180
16	-10	5/8	15.9	23	25.4	3600	250	14400	1000	7.9	200
19	-12	3/4	19	27	29.4	3100	215	12400	860	9.4	240
25	-16	1	25.4	35	37.3	2400	165	9600	660	11.8	300
32	-20	1 1/4	31.8	44.5	48.3	1800	125	7200	500	16.5	420
38	-24	1 1/2	38.1	51	54.7	1300	90	5200	360	19.7	500
51	-32	2	50.8	63.5	67.4	1160	80	4640	320	24.8	630
*60	-38	2 3/8	60.3	71.5	75.8	1015	70	4060	280	30	762
*64	-40	2 1/2	63.5	76.2	82.5	1000	69	4000	276	30	762
*76	-48	3	76.2	89.4	96	650	45	2600	179	36	915
*90	-56	3 1/2	90	101.2	107.5	400	28	1600	110	42	1067
*100	-64	4	101.6	113.2	118.5	365	25	1460	101	43.5	1105

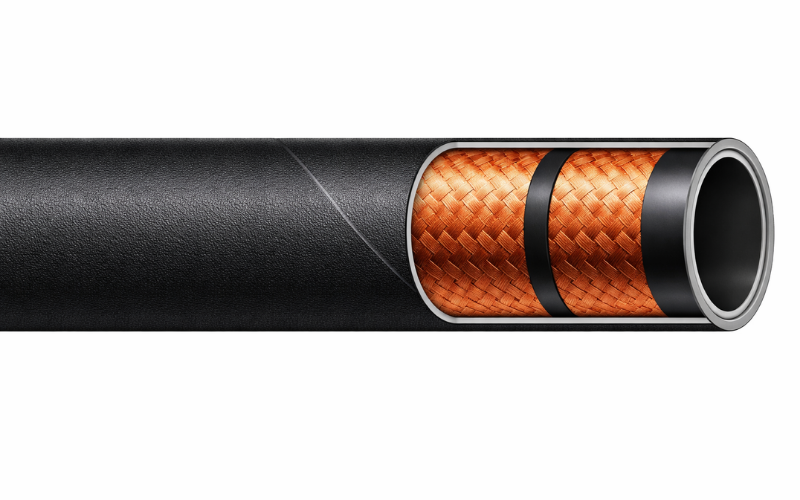

R3

Application

Medium pressure hydraulic oils, air and water

Construction Tube Reinforcement Cover



Synthetic oil resistant rubber



2 textile braids



Synthetic rubber – abrasion, ozone and weather resistant

Temp. Range Impulse Cycles



-40oC to +120Co

Hose Specification Table

Hose Size						Maximum Working Pressure		Minimum Burst Pressure		Minimum Bend Radius
Code		I.D.		R.O.D.	O.D.	psi	bar	psi	bar	inch	mm
		inch	mm	mm	mm
6	-4	1/4	6.4		14.3	1250	86	5000	345	3	76
8	-5	May-16	7.9		17.5	1200	83	4800	331	4	102
10	-6	3/8	9.5		19	1125	78	4500	310	4	102
12	-8	1/2	12.7		23.8	1000	69	4000	276	5	127
16	-10	5/8	15.9		27	875	60	3500	241	5.5	140
19	-12	3/4	19		31.8	750	52	3000	207	6	152
25	-16	1	25.4		38.1	565	39	2250	155	8	203
32	-20	1 1/4	31.8		44.5	375	26	1500	103	10	254
*38	-24	1 1/2	38.1		50.8	250	17	1000	69	12	306
*51	-32	2	50.8		64	215	15	860	60	16.1	410

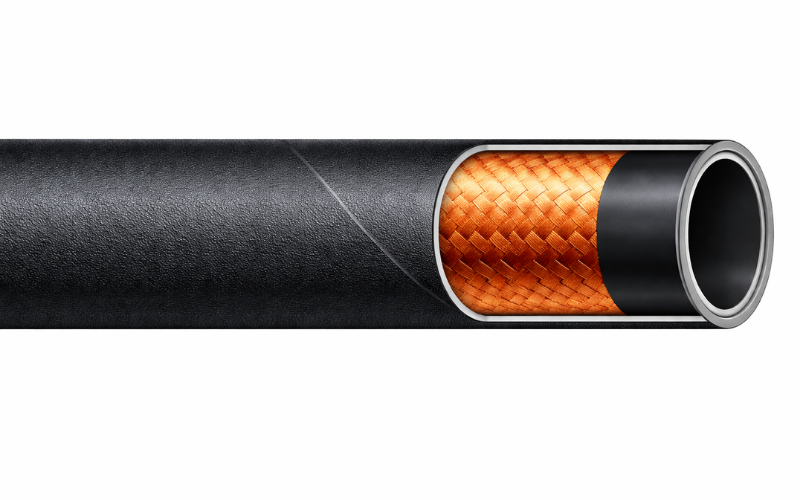

R6

Application

Low pressure hydraulic oils, air and water

Construction Tube Reinforcement Cover



Synthetic oil resistant rubber



1 textile braids



Synthetic rubber – abrasion, ozone and weather resistant

Temp. Range Impulse Cycles



-40C to + 120C

Hose Specification Table

Hose Size						Maximum Working Pressure		Minimum Burst Pressure		Minimum Bend Radius
Code		I.D.		R.O.D.	O.D.	psi	bar	psi	bar	inch	mm
		inch	mm	mm	mm
6	-4	1/4	6.4		12.7	400	28	1600	110	2.5	64
8	-5	5/16	7.9		14.3	400	28	1600	110	3	76
10	-6	3/8	9.5		15.9	400	28	1600	110	3	76
12	-8	1/2	12.7		19.8	400	28	1600	110	4	102
16	-10	5/8	15.9		23	350	24	1400	97	5	127
19	-12	3/4	19		26	300	21	1200	83	6	152
25	-16	1	25.4		32.5	190	13	760	52	9.1	230

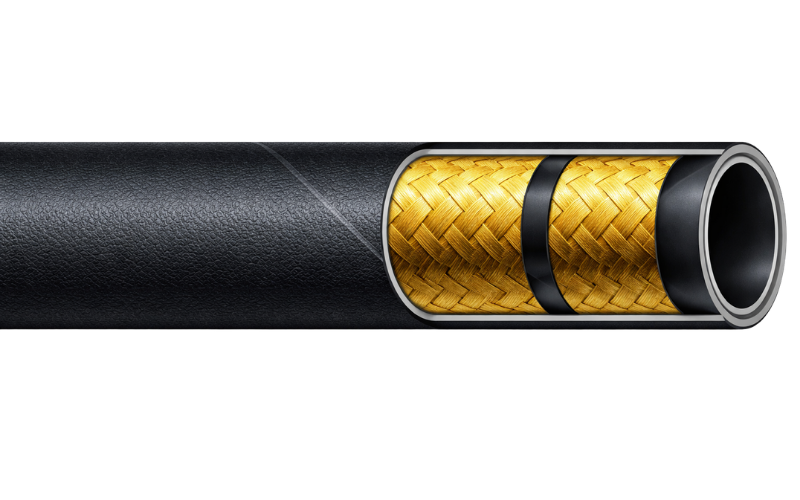

Jack H

Application

Hydraulic jack application usea in jacking systems

Construction Tube Reinforcement Cover



Synthetic oil resistant rubber 2 high tensile steel wire braids



Synthetic rubber – abrasion, ozone and weather resistant

Temp. Range Impulse Cycles



-40C to + 50C

Hose Specification Table

Hose Size						Maximum Working Pressure		Minimum Burst Pressure		Minimum Bend Radius
Code		I.D.		R.O.D.	O.D.	psi	bar	psi	bar	inch	mm
		inch	mm	mm	mm
6	-4	1/4	6.4	12.7	14.8	10000	690	20000	1380	4	102
10	-6	3/8	9.5	16.7	18.8	10000	690	20000	1380	5	127

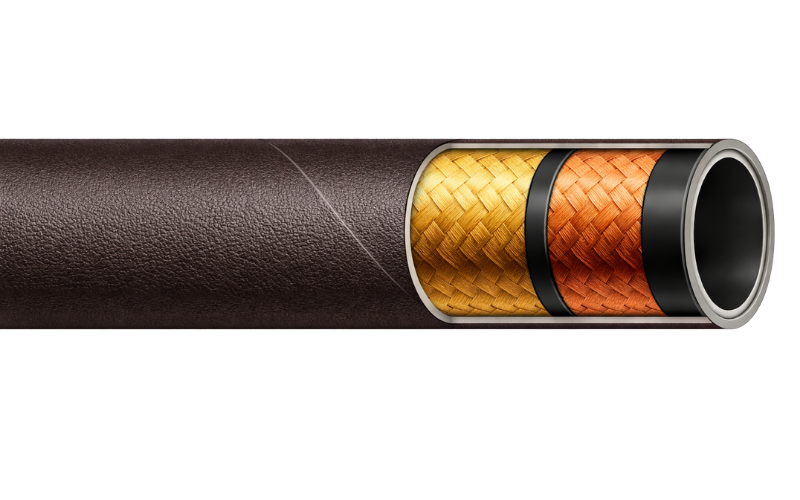

R5C / R5R

Application

High pressure hydraulic oils, air and water

Construction Tube Reinforcement Cover



Synthetic oil resistant rubber



1 textile braid and



1 high tensile steel wire braid



R5C: Oil and mildew resistant rubber impregnated cotton cover



R5R: ynthetic rubber – abrasion, ozone and weather resistant Upto 7/8 inch – 150,000

Temp. Range Impulse Cycles



1 1/8 inch and above – 100,000

Hose Specification Table

Hose Size						Maximum Working Pressure		Minimum Burst Pressure		Minimum Bend Radius
Code		I.D.		R.O.D.	O.D.	psi	bar	psi	bar	inch	mm
		inch	mm	mm	mm
6	-5	1/4	6.4		14.4	3000	207	12000	828	3.4	86
8	-6	5/16	7.9		17.2	2250	155	9000	621	4	102
10	-8	13/32	10.3		19.5	2000	138	8000	552	4.6	117
12	-10	1/2	12.7		23.4	1750	121	7000	483	5.5	140
16	-12	5/8	15.9		27.4	1500	103	6000	414	6.5	165
22	-16	7/8	22.2		31.4	800	55	3200	221	7.4	187
29	-20	1 1/8	28.7		38.1	625	43	2500	172	9	229
35	-24	1 3/8	34.9		44.5	500	34	2000	138	10.5	267
46	-32	1 13/16	46		57.1	350	24	1400	97	13.2	337
60	-38	2 3/8	60.3		73	350	24	1400	97	21	610

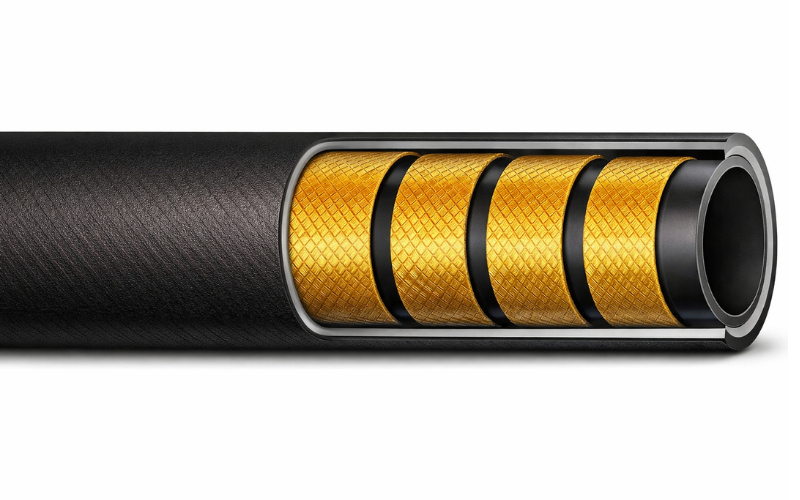

4SP

Application

Very high pressure hydraulics

Construction Tube Reinforcement Cover



Oil resistant synthetic rubber



4 high tensile steel wire spirals



Synthetic rubber – abrasion, ozone and weather resistant

Temp. Range Impulse Cycles



-40C to + 100C continuous

Impulse Cycles



+125C intermitted



Minimum 400,000

Hose Specification Table

Hose Size						Maximum Working Pressure		Minimum Burst Pressure		Minimum Bend Radius
Code		I.D.		R.O.D.	O.D.	psi	bar	psi	bar	inch	mm
		inch	mm	mm	mm
10	-6	3/8	9.5	17.5	21.2	6450	445	25800	1780	7.1	180
12	-8	1/2	12.7	20.2	24.4	6020	415	24070	1660	9	230
16	-10	5/8	15.9	23.8	28	5075	350	20300	1400	9.8	250
19	-12	3/4	19	28.2	32	5075	350	20300	1400	11.8	300
25	-16	1	25.4	35.3	39.5	4060	280	16240	1120	13.3	340
32	-20	1 1/4	31.8	46	50.6	3045	210	12180	840	18.1	460
38	-24	1 1/2	38.1	52.4	57	2685	185	10730	740	22	560
51	-32	2	50.8	65.3	69.6	2395	165	9570	660	25.9	660

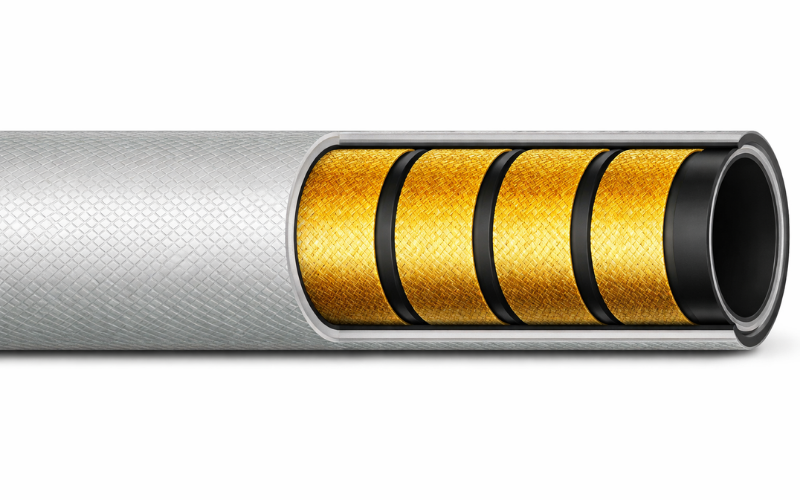

R12

Application

Very high pressure hydraulics

Construction Tube Reinforcement Cover



Oil resistant synthetic rubber



4 high tensile steel wire spirals



Synthetic rubber – abrasion, ozone and weather resistant

Temp. Range Impulse Cycles



-40C to + 100C continuous



+125C intermitted

Impulse Cycles



Minimum 500,000

Hose Specification Table

Hose Size						Maximum Working Pressure		Minimum Burst Pressure		Minimum Bend Radius
Code		I.D.		R.O.D.	O.D.	psi	bar	psi	bar	inch	mm
		inch	mm	mm	mm
10	-6	3/8	9.5	17.2	20.1	4000	276	16000	1100	5	127
12	-8	1/2	12.7	20.7	23.6	4000	276	16000	1100	7	178
16	-10	5/8	15.9	24.6	27.2	4000	276	16000	1100	8	203
19	-12	3/4	19	27.65	30.5	4000	276	16000	1100	9.5	241
25	-16	1	25.4	34.9	37.8	4000	276	16000	1100	12	305
32	-20	1 1/4	31.8	43.9	46.8	3000	207	12000	825	16.5	419
38	-24	1 1/2	38.1	50.4	53.3	2500	172	10000	685	20	508
51	-32	2	50.8	63.65	66.5	2500	172	10000	685	25	635

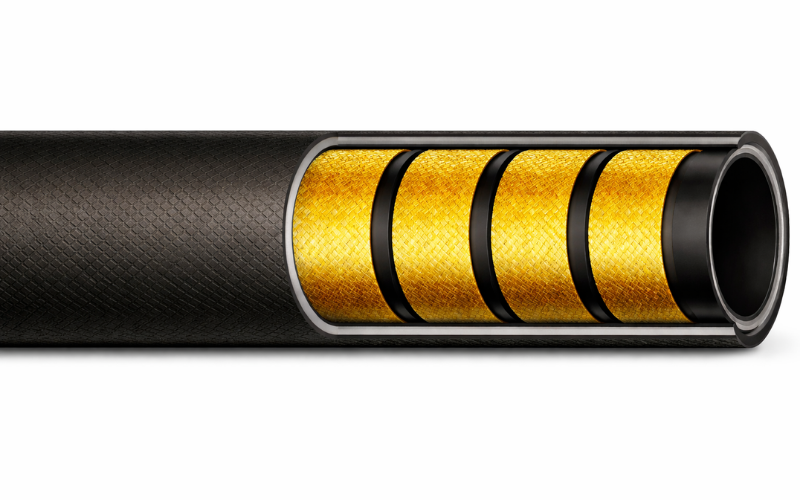

R13

Application

Extremely high pressure hydraulics

Construction Tube Reinforcement Cover



Oil resistant synthetic rubber



4 or 6 high tensile steel wire spirals



Synthetic rubber – abrasion, ozone and weather resistant

Temp. Range Impulse Cycles



-40C to + 100C continuous



+121oC intermitted

Impulse Cycles



Minimum 500,000

Hose Specification Table

Hose Size						Maximum Working Pressure		Minimum Burst Pressure		Minimum Bend Radius
Code		I.D.		R.O.D.	O.D.	psi	bar	psi	bar	inch	mm
		inch	mm	mm	mm
10	-6**	3/8	9.5	19.4	22.4	10000	690	40000	2760	6	152
12	-8**	1/2	12.7	22.6	25.5	7500	517	30000	2070	8	200
19	*-12	3/4	19	29	31.9	5000	345	20000	1380	9.5	241
25	*-16	1	25.4	35.65	38.5	5000	345	20000	1380	12	305
32	-20	1 1/4	31.8	46.8	49.6	5000	345	20000	1380	16.5	419
38	-24	1 1/2	38.1	54.3	57.1	5000	345	20000	1380	20	508
51	-32	2	50.8	68.1	70.9	5000	345	20000	1380	25	635

* 4 spirals ** Not covered in SAE

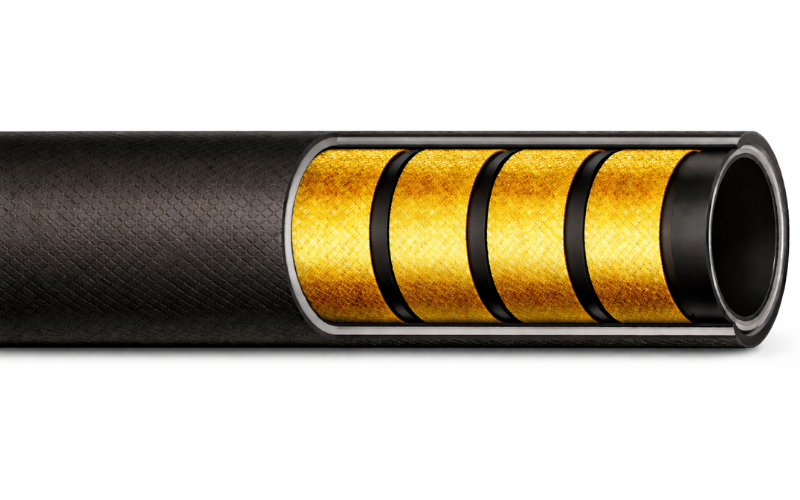

R15

Application

Extremely high pressure, heavy duty,
high impulse hydraulics

Construction Tube Reinforcement Cover



Oil resistant synthetic rubber



4 or 6 high tensile steel wire spirals



Synthetic rubber – abrasion,



ozone and weather resistant

Temp. Range Impulse Cycles



-40C to + 100C continuous



+121oC intermitted

Impulse Cycles



Minimum 500,000

Hose Specification Table

Hose Size						Maximum Working Pressure		Minimum Burst Pressure		Minimum Bend Radius
Code		I.D.		R.O.D.	O.D.	psi	bar	psi	bar	inch	mm
		inch	mm	mm	mm
19	-12	3/4	19	28.4	32	6000	414	24000	1655	10.5	267
25	-16	1	25.4	35.2	38.5	6000	414	24000	1655	13	330
32	-20	1 1/4	31.8	46.8	49.6	6000	414	24000	1655	17.5	445
38	-24	1 1/2	38.1	54.3	57.1	6000	414	24000	1655	21	533

* Exceeds DIN 20023 4SH & SAE 100 R13 spec., particularly on impulse test & burst pressure. (3/4" & 1") - 4 high tensile steel spirals. (1 1/4" & 1 1/2") - 6 high tensile steel spirals.

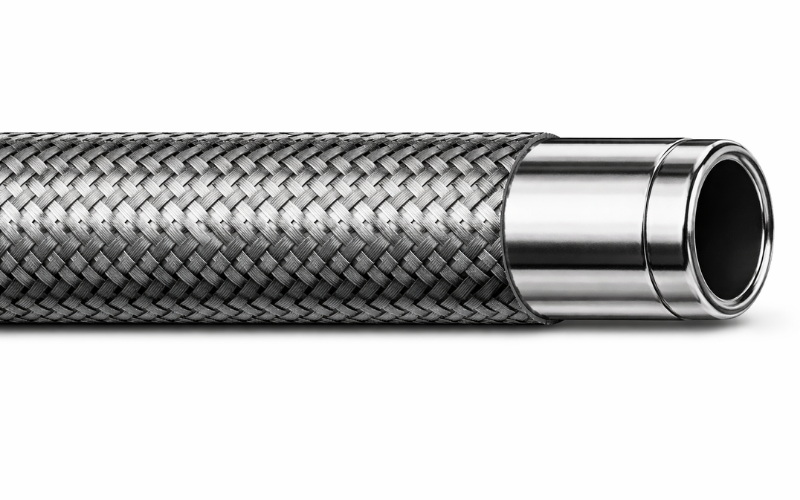

Teflon Hose Plain PTFE tube

Application

Steam lines, hot lines, corrosive chemical transfer, conveying gases and refrigerants and food processing.

Construction Tube Reinforcement Cover



Single stainless steel wire braid offers great resistance to corrosive chemicals and high temperatures.



It is resistant to most known chemicals, acids, alkalies, oils, corrosives and gases.



Working pressure is 1/4 of burst.



PTEF hose with double wire braid available for high pressure applications and where tight bend radius is required.

Temp. Range Impulse Cycles



– 70C0 to +260C0

Hose Specification Table

Code	I D mm	O D mm	Working Pressure kg/cm²	Minimum Bend Radius mm
TF50	4.8	8	260	50
TF06	6	9.3	205	80
TF08	8	10	195	110
TF10	9.5	12	145	130
TF12	13	16	135	165
TF16	16	19	90	205
TF20	19	23	65	225
TF25	25	29	50	330

Crimp Fittings

Hose Specification Table

Code	Description	1/4"	5/16"	3/8"	1/2"	5/8"	3/4"	1"	1.1/4"	1.1/2"	2"
H240110	JIS METRIC FEMALE 60° CONE SEAT CRIMP NUT	14x1.5	14x1.5	16x1.5	22x1.5	24x1.5	26x1.5
H238110	JIS BSP 60° CONE SEAT CRIMP NUT	1/4"		3/8"	1/2"		3/4"	1"
H100500	DOUBLE CONNECTOR	1/4"		3/8"	1/2"		3/4"	1"
M.IP	BRAZING TAIL	1/4"		3/8"	1/2"	5/8"	3/4"	1"	1.1/4"
0833080	SAT SPLIT FLANGE 3000 PSI CODE 61					-8	-12	-12	-16	-20	-24
0836090	SAE SPLIT FLANGE 6000 PSI CODE 62					-8	-12	-16	-20	-24	-32

Hose Specification Table

Code	Description	1/4"	5/16"	3/8"	1/2"	5/8"	3/4"	1"	1.1/4"	1.1/2"	2"
H236910	900 SAE FLANGE 6000 PSI CODE 62				-8	-12	-16	-20	-24	-32
H236410	450 SAE FLANGE 6000 PSI CODE 62				-8	-12	-16	-20	-24	-32
H220100	METRIC STANDPIPE STRAIGHT L.T.	6	8	10	12	18	22	28	35	42
H220900	90° METRIC STANDPIPE L.T.	6	8	10	12	18	22	28	35	42
H220400	45° METRIC STANDPIPE L.T.	6	8	10	12	18	22	28	35	42
H221100	METRIC STANDPIPE STRAIGHT H.T.	6	8	10	12	16	20	25	30	38
H221900	900 METRIC STANDPIPE H.T.	6	8	10	12	16	20	25	30	38
H221400	45° METRIC STANDPIPE H.T.	6	8	10	12	16	20	25	30	38
H215130	O RING METRIC FEMALE 24° CRIMP NUT	6	8	10	12	18	20	25	30	38	42
H215920	90° METRIC FEMALE 24° CRIMP NUT	6	8	10	12	18	20	25	30	38	42
H112100	METRIC MALE 24°	8	10	12	15	18	22	28	35	42

Hose Specification Table

Code	Description	1/4"	5/16"	3/8"	1/2"	5/8"	3/4"	1"	1.1/4"	1.1/2"	2"
H247920	900 JIC FEMALE LONG DROP ELBOW 74° CRIMP NUT	7/16"		9/16"	7/8"	1.1/16"	1.1/16"	1.5/16
H225420	45° JIC FEMALE 74° CONE SEAT CRIMP NUT	7/16"	9/16"	3/4"	7/8"	1.1/16"	1.1/16"	1.5/16"	1.5/8"
H124100	ORFS MALE	9/16"		9/16"	13/16"	1"	1.3/16"	1.7/16"	1.11/16"	2"
H224110	ORFS FEMALE CRIMPED BACK NUT	7/16"		9/16"	13/16"	1"	1.3/16"	1.7/16"	1.11/16"	2"
H224910	90° ORFS FEMALE CRIMPED BACK NUT	7/16"		9/16"	13/16"	1"	1.3/16"	1.7/16"	1.11/16"	2"
H244930	90° ORFS FEMALE LONG DROP CRIMPED BACK NUT						1.3/16"	1.7/16"
H224410	45° ORFS FEMALE CRIMPED BACK NUT			9/16"	13/16"		1.3/16"	1.7/16"
H233110	STRAIGHT SAE FLANGE 3000 PSI CODE 61					-8	-12	-16	-20	-24	-32
H233910	90° SAE FLANGE 3000 PSI CODE 61					-8	-12	-16	-20	-24	-32
H233410	45° SAE FLANGE 3000 PSI CODE 61					-8	-12	-16	-20	-24	-32
H236110	STRAIGHT SAE FLANGE 6000 PSI CODE 62					-8	-12	-16	-20	-24	-32

Hose Specification Table

Code	Description	1/4"	5/16"	3/8"	1/2"	5/8"	3/4"	1"	1.1/4"	1.1/2"	2"
H107100	BSP MALE TAPERED	1/8"	1/4"	3/8"	1/2"	3/4"	1"	1.1/4"	1.1/2"	2"
H105100	BSP MALE PARALLEL 60° CONE SEAT	1/8"	1/4"	3/8"	3/8"	5/8"	3/4"	1"	1.1/4"	1.1/2"	2"
H205120	BSP FEMALE 60° CONE CRIMP NUT	1/8"	1/4"	3/8"	1/2"	5/8"	3/4"	1"
H205130	BSP FEMALE 60° CONE SLIP-ON NUT							1.1/4"	1.1/2"	2"
H205920	90° BSP FEMALE SWEPT ELBOW 60° CONE CRIMP NUT	1/8"	1/4"	3/8"	1/2"	5/8"	3/4"	1"
H205420	45° BSP FEMALE SWEPT ELBOW CRIMP NUT	1/8"	1/4"	3/8"	1/2"	5/8"	3/4"	1"
H125100	JIC MALE 74° CONE	7/16"	5/8"	9/16"	3/4"	7/8"	1.1/16"	1.1/16"	1.5/16"	1.5/8"	2.1/2"
H225120	JIC FEMALE 74° CONE SEAT CRIMP NUT	7/16"	9/16"	3/4"	7/8"	1.1/16"	1.1/16"	1.5/16"	1.5/8"	1.7/8"	2.1/2"
H225920	90° JIC FEMALE ELBOW 74° CONE SEAT CRIMP NUT	7/16"	5/8"	9/16"	3/4"	7/8"	1.1/16"	1.1/16"	1.5/16"	1.5/8"
